README

rSpectral

The goal of ‘rSpectral’ is to make Spectral Modularity graph clustering method available to most of R graph frameworks.

Installation

You can install the development version of rSpectral from GitHub with:

# install.packages("devtools")
devtools::install_github("cmclean5/rSpectral")

The stable version is available on CRAN:

install.packages("rSpectral")

Example

This is a basic example which shows you how to solve a common problem

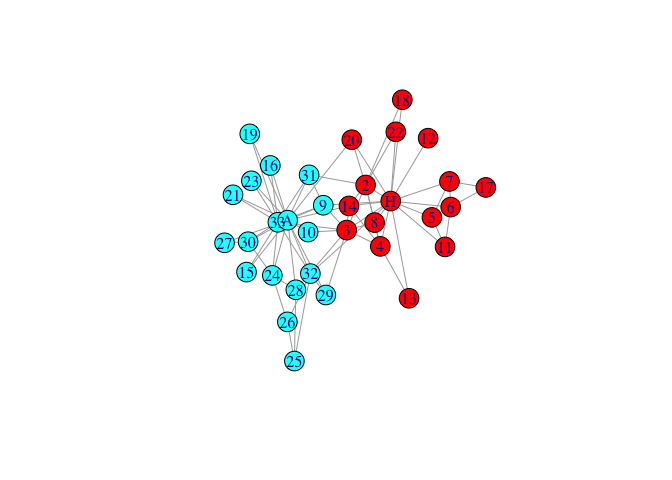

load the karate club graph and plot Faction membership:

library(rSpectral)
library(igraph)
#>
#> Attaching package: 'igraph'
#> The following objects are masked from 'package:stats':
#>
#>     decompose, spectrum
#> The following object is masked from 'package:base':
#>
#>     union
data(karate, package="igraphdata")
l<-layout_nicely(karate)
memT<-V(karate)$Faction
palette <- rainbow(max(as.numeric(memT)))
plot(karate,vertex.color=palette[memT],layout=l)

run spectral clustering on graph

mem0<-igraph::membership(rSpectral::spectral_igraph_communities(karate))

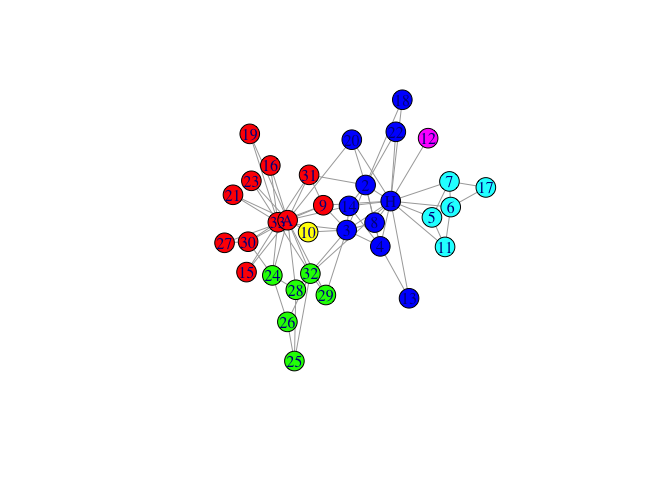

plot the graph with membership colors

palette <- rainbow(max(as.numeric(mem0)))
plot(karate,vertex.color=palette[mem0],layout=l)

run spectral clustering on graph, fixing neighbouring nodes found in same community

mem1<-igraph::membership(
  rSpectral::spectral_igraph_communities(karate, fix_neig=1))

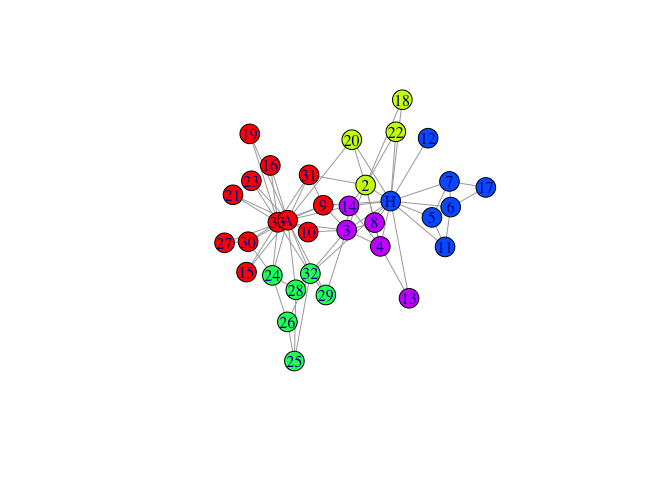

and plot again

palette <- rainbow(max(as.numeric(mem1)))
plot(karate,vertex.color=palette[mem1],layout=l)

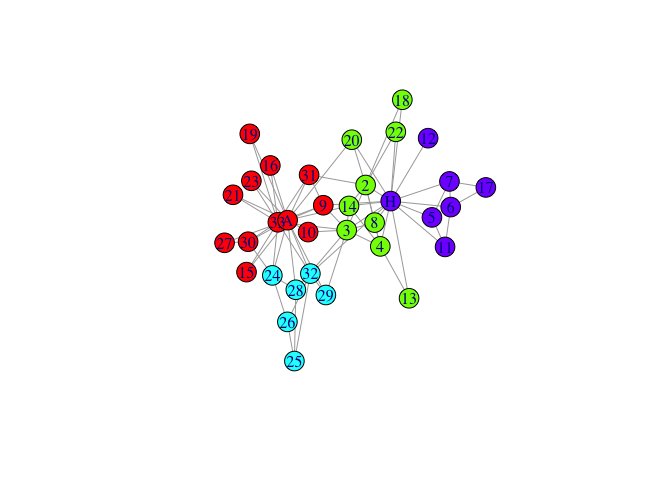

run spectral clustering - fixing neighbouring nodes, Cnmin=5

mem1.5<-igraph::membership(
  rSpectral::spectral_igraph_communities(karate, fix_neig=1,Cn_min=5))

and the last plot

palette <- rainbow(max(as.numeric(mem1.5)))
plot(karate,vertex.color=palette[mem1.5],layout=l)

GraphNEL objects could be processed similarily, all other graph types could be converted either to igraph or to GraphNEL by packages such as Intergraph.
