High-Performance Open-Source Archive
The objective of ggrefine is to provide some pretty ggplot2 complete themes, and refine functions to tweak these easily based on the particulars of a plot.
Install from CRAN, or development version from GitHub.
install.packages("ggrefine")
pak::pak("davidhodge931/ggrefine")The themes are built to work with the refine functions - and can be customised easily.
The theme_grey (and theme_oat functions
differs from the other two in that the panel_grid_colour by
default is derived by applying a multiply blend on the
panel_background_fill.
To avoid namespace collisions, it is recommended to not load the
package, but instead refer to each function with the package name
(e.g. ggrefine::theme_grey().
library(ggplot2)
p_base_light <- mpg |>
ggplot(aes(x = hwy)) +
geom_histogram(
stat = "bin", shape = 21,
colour = blends::multiply("#357BA2FF")
) +
scale_y_continuous(expand = expansion(mult = c(0, 0.05)))
p_base_dark <- mpg |>
ggplot(aes(x = hwy)) +
geom_histogram(
stat = "bin", shape = 21,
colour = blends::screen("#357BA2FF")
) +
scale_y_continuous(expand = expansion(mult = c(0, 0.05)))
p_light <- p_base_light + ggrefine::theme_light() + labs(title = "ggrefine::theme_light")
p_dark <- p_base_dark + ggrefine::theme_dark() + labs(title = "ggrefine::theme_dark")
p_grey <- p_base_light + ggrefine::theme_grey() + labs(title = "ggrefine::theme_grey")
p_oat <- p_base_light + ggrefine::theme_oat() + labs(title = "ggrefine::theme_oat")
patchwork::wrap_plots(
p_light,
p_dark,
p_grey,
p_oat
)
The other functions adjust gridlines and axis elements based on axis
types (x_type and y_type), which default to
"continuous".
set_theme(new = ggrefine::theme_grey())
p_continuous <- mpg |>
ggplot(aes(x = displ, y = hwy)) +
geom_point(shape = 21, colour = blends::multiply("#357BA2FF"))
p_discrete_x <- mpg |>
ggplot(aes(x = drv, y = hwy)) +
geom_jitter(shape = 21, colour = blends::multiply("#357BA2FF"))
p_discrete_y <- mpg |>
ggplot(aes(x = hwy, y = drv)) +
geom_jitter(shape = 21, colour = blends::multiply("#357BA2FF"))

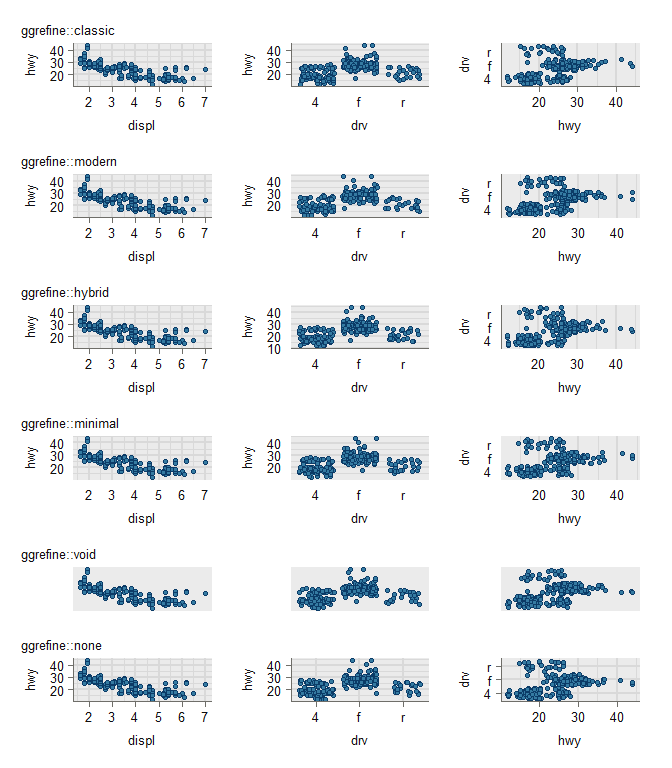

patchwork::wrap_plots(
p_continuous + ggrefine::classic() + labs(title = "ggrefine::classic"),
p_discrete_x + ggrefine::classic(x_type = "discrete"),
p_discrete_y + ggrefine::classic(y_type = "discrete"),
p_continuous + ggrefine::modern() + labs(title = "ggrefine::modern"),
p_discrete_x + ggrefine::modern(x_type = "discrete"),
p_discrete_y + ggrefine::modern(y_type = "discrete"),
p_continuous + ggrefine::hybrid() + labs(title = "ggrefine::hybrid"),
p_discrete_x + ggrefine::hybrid(x_type = "discrete"),
p_discrete_y + ggrefine::hybrid(y_type = "discrete"),
p_continuous + ggrefine::minimal() + labs(title = "ggrefine::minimal"),
p_discrete_x + ggrefine::minimal(x_type = "discrete"),
p_discrete_y + ggrefine::minimal(y_type = "discrete"),
p_continuous + ggrefine::void() + labs(title = "ggrefine::void"),
p_discrete_x + ggrefine::void(x_type = "discrete"),
p_discrete_y + ggrefine::void(y_type = "discrete"),
p_continuous + ggrefine::none() + labs(title = "ggrefine::none"),
p_discrete_x + ggrefine::none(x_type = "discrete"),
p_discrete_y + ggrefine::none(y_type = "discrete"),
ncol = 3
)
This package is part of a group of related packages built to extend ggplot2.
|
|
|
|
|
|
